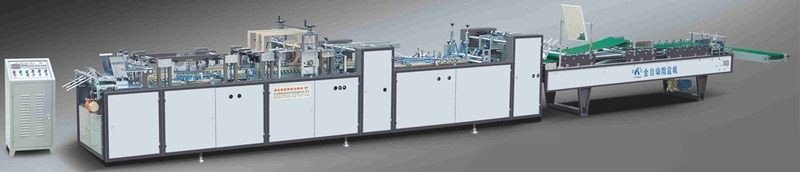

Prefold Crash Lock Bottom Box Folder Gluer

Box folding, gluing and quality inspection finish at the same timerejected sheet
·It can be used as an independent inspection machine or add it on your folder gluerwithout modify your press

Product Details

ZH-580D

Prefold&bottom lock Folding Gluing Machine (Casting construction )

1. Features:
·Box folding, gluing and quality inspection finish at the same timerejected sheet
·It can be used as an independent inspection machine or add it on your folder gluerwithout modify your press
·It can detect the overall information, including printing quality of both side, die cuttingand supervision code, etc
·Easy software design enable the operators mastered the operation skills within two hours
·Switching new job takes no more than 2 minutes
·The stable detection ability enable the system’s judging standards of rejection closeto human standard pick out the real rejected products and saving cost
2. Main technical parameter:

Model	ZH-580D
Top speed	240m/min
Sheet applicable	250-800gsm card board,E corrugated paper
Electric power single phase	380V,6.2KW
A side Max paper in size	580mm
A side Min paper in size	110mm
B max finished product in size	280mm
B min finished product in size	50mm
C side longest paper	600mm
C side shortest paper	50mm
D side min pasting side	8mm
Overall dimension	1100012001300mm
Weight of machine	3500kg
Casting construction	40mm

3.Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section			√
3	Pre-fold Section		√
4	Crash lock bottom section		√
5	Upper paste barrel equipment		√
6	Down pasting equipment		√
7	Gluing system			√
8	Grinding part			√
9	Plasma treatment system			√
10	Folding and closing section		√
11	Trombone section		√
12	Air compressor			√

Machine configuration

Main motor	suchuang shanghai
Bearing	made in china
Wall thickness	40mm Casting Construction
Feeding belt	made in china
Plain belt	made in china
Low voltage apparatus	CHNT
Fasten bolts	Level 8.8 tanwan

4.Feature

1.Feeder Section
Equipped with vibrating motor.
With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.

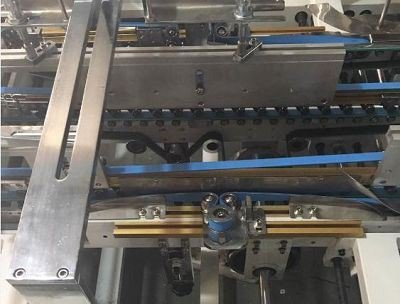

2.Folding Section
Longer Folding section convenient adjustment and operation can fold boxes perfectly

3.Bottom Lock Section
Big-volume design,when the machine is running at high speed,the glue will not go out or leaking .Optionalbottle is good for long time operation.
Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
Two lower (left and right) gluing tanks.
Easy to remove and clean.

4.Folding Section
Longer Folding section convenient adjustment and operation can fold boxes perfectly

5.Trombone Section
Pressure can be adjusted according to paper thickness.For overlapping and jogger devices are equipped to ensure box gluing well.After kicker is set up,whatever speed the machine runs,the kicker can automatically follow,no need to reset it .
