Home > Product > Pre-fold and Crash Lock Bottom Folder Gluer

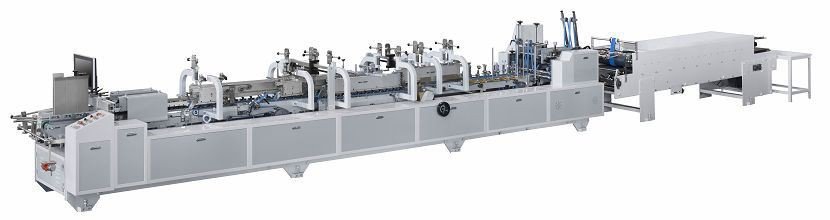

Prefold and Crash Bottom Lock Gluer Folder Machine

ZH-A580PC folder gluer is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm.

Product Details

ZH-A580PC corner folder gluer

1. Characteristics:
ZH-A580PC folder gluer is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm.
Larger sized folding section will increase the folding and gluing accuracy,
and thus decrease the trumpet mouth box forming on the older generation model.
Upper belt of ZH1200G can be adjusted separately, and thus for E corrugated box,
the trumpet mouth box forming phenomena will also be decreased. Its motor can
be separately independently and makes the collecting effect better.
It is ideal equipment for large box packing factories.Driving by synchronous belt,ensure smooth and accurate running.
2. Main technical parameter:

Model	ZH-A580PC
Suitable material	Card board 210gsm-850gsm
Max method	Automatic continuous feeding
Max mechanical speed	350m/min
Overall dimension	1250015001400mm
Weight	5T
Power consumption	11KW,380V,50HZ

3.Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section		√
3	Pre-fold Section		√
4	Crash lock bottom section		√
6	Down pasting equipment		√
7	gluing system			√
8	Grinder device			√
9	Plasma treatment system			√
10	Folding and closing section		√
11	Trombone section		√
13	4-6 corner			√

4.Machine configuration

Main motor	TECO Taiwan
Touch screen	Siemens
PLC	Siemens
Inverter	Siemens
Ribbed belt	WUTONG
Drive Bearing	NSK
Wall thickness	20mm tempered
Feeding belt	NITTA
Plain belt	NITTA Japan
Circuit Breaker	Schneider
Rely	Schneider
Button	Schneider
Switch power supply	Schneider
Photo Switch	Panasonic

Features：

		Straight line box	Double sides box	Crash-lock bottom box
A	MAX	600	580	520
A	MIN	100	100	150
B	MAX	800	600	600
B	MIN	50	70	50
C	MAX	200	150	130
C	MIN	7	10	20

Exhibition：

certificate:

FAQ:
Q1: What’s your price? Does your machine can satisfy our demand & requirements?
A: 1). You can contact us to get latest price. Please feel free to call or e-mail us, also you can scan the QR code as above for contact.
2). We will provide you the best machine, and reasonable prices in the market. Welcome to compare all, your demands will be our goal & services.
Q2: How does your factory do regarding quality control?
A: Quality is priority. BM Marking people always attach great importance to quality controlling from the very beginning to the very end.
Q3:Are you a manufacturer or just a trading company?
A:We are not only a trading company but also a manufacturer with exporting license having many years experience.
Q4:Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q5: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
Q6: What is the Purity Rate of the Cable Wire Recycling Machine ?
A: Our Machine is new design and the purity rate can be higher than 99% !
Q7: What is the Spare Parts, and how long can it works ?
A: The spare parts are the blades and screen, and can use as least for a year.
Q8: What’s your Warranty Time ? Do you have engineers available if we have problem ?
A:Yes ! We have more than 10 experienced engineers , if you have any questions or need
engineers to go to check , we will surely offer support !
