High Speed Intelligent 4 and 6 Corner Folder Gluer

This machine adopts double frequency conversion independent control drive. The paper inlet belt automatically takes out the paper, and the paper outlet is equipped with a light eye automatic control to start and stop the machine.

Product Details

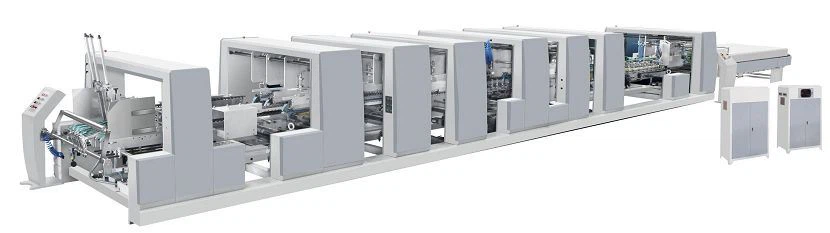

ZH-M1050 4/6 Corner Automatic Folder Gluer

1. Characteristics:
This machine adopts double frequency conversion independent control drive. The paper inlet belt automatically takes out the paper, and the paper outlet is equipped with a light eye automatic control to start and stop the machine. According to the thickness of the paperboard, the flattening part can automatically press the paperboard until it is output from the flattening belt. After output, the carton can be packed directly.

2. Main technical parameter:

Model	ZH-M1050 4/6 Corner
Suitable material	Card board 210-850gsm,N/E/F/B flute corrugated board
Max method	Automatic continuous feeding
Max mechanical speed	350m/min
Overall dimension	1900019001650mm
Weight	11T
Power consumption	20KW,380V,50HZ

3.Machine configuration

Main motor	GPG Taiwan
PLC	Siemens
Inverter	Siemens
Touch screen	Siemens
Timing belt and pulley	Optibelt german
Bearing	NSK
Main axis	Taiwan chrome plated steel bar
Wall thickness	20mm tempered
Plain belt	NITTA Japan
Low voltage apparatus	Schneider
Fasten bolts	Level 12.9 Taiwan
Air cylinder	AIR TAC Taiwan
Button	Schneider

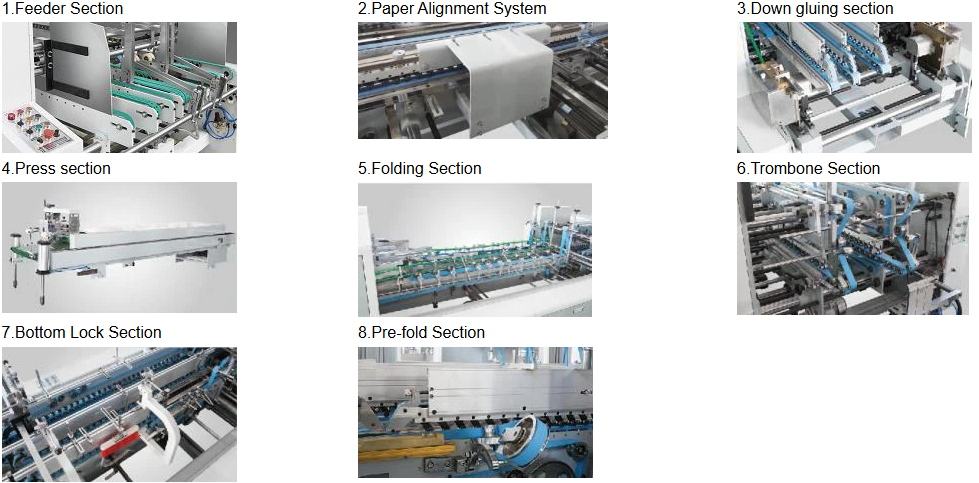

4.Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section		√
3	Pre-fold Section		√
4	Crash lock bottom section		√
5	Down pasting equipment		√
6	Gluing system		√
7	Grinder device			√
8	Plasma treatment system			√
9	Folding and closing section		√
10	Trombone section		√
11	4-6 corner		√

5.Feature:
Suitable for micro corrugated paper boxs for hardware(flute E/F/N).
180° for the first creasing line,135° for the third line more suitable for paper boxes which needs to be pre-folded,especially for those medicine,wine boxes to be running on automatic packaging flow line and need easy opening and forming.
Plasma system ( optional ).
Glue – spraying system ( optional ).
Automatic carton folder gluer machine GDHH800 are suitable all kinds of cosmetic box, wine box and the CD, document boxes, edged-medicine box etc.

ZH-1050
		Straight line box	Double sides box	Crash-lock bottom box	4-corner box	6-corner box
A	MAX	1100	1050	1000	950	950
A	MIN	180	200	180	180	300
B	MAX	1100	900	70	800	800
B	MIN	70	120	1100	80	80
C	MAX	400	200	250	150	150
C	MIN	15	20	30	25	25
