Automatic Crash Lock Bottom Folder Gluer

This machine adopts double frequency conversion independent control drive. The paper inlet belt automatically takes out the paper, and the paper outlet is equipped with a light eye automatic control to start and stop the machine.

Product Details

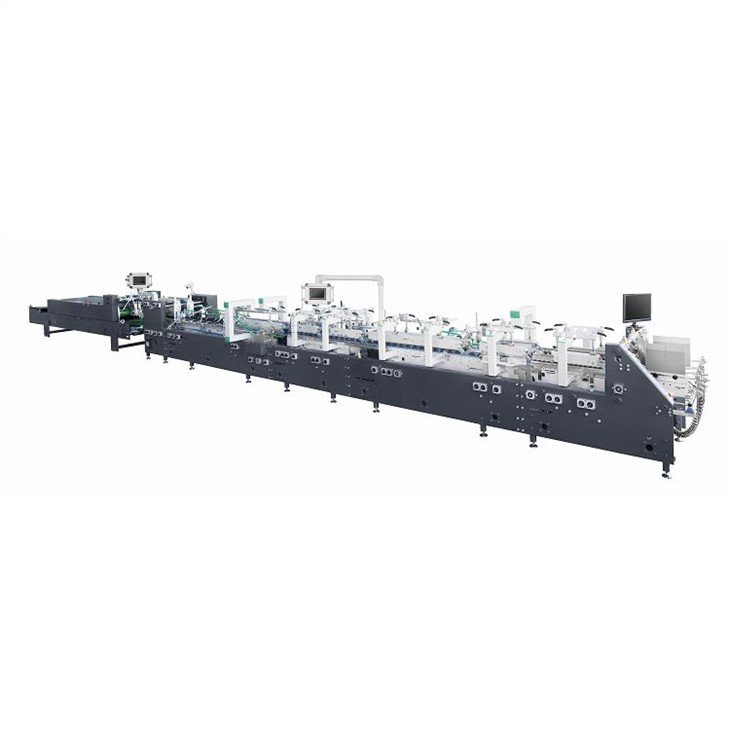

ZH-B850PC Folder Gluer

1.Characteristics:
1.Driving by synchronous belt,ensure smooth and accurate running.
2.Inverter driving,stable and power saving.
3.Use electric adjust,easy operate.
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
5.Automatic counting and kicking,quantity can preset.
6.Conveyer pressure adjustable according to the box to ensure best quality.
2.Main technical parameter:

ModelZH-B850PC
Suitable materialCard board210-850gsm,E/F flute corrugated board
Max methodAutomatic continuous feeding
Max mechanical speed400m/min
Overall dimension15500*1400*1800mm
Weight7T
Power consumption23KW, 380V, 50HZ

3.Machine configuration

Main motorSiemens
PLCSiemens
InverterVEICHI
Touch screenVEICHI
Feeder beltNITTA JAPAN
Ribbed beltHutchinson
BearingNSK JAPAN
Plain beltNITTA Japan
Low voltage apparatusSchneider

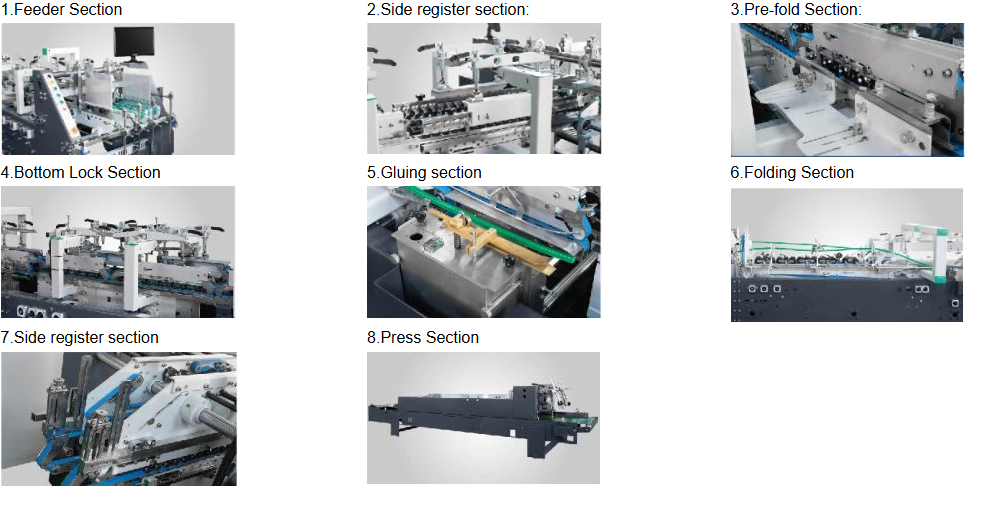

4.Standard & Optional configuration list

 ConfigurationUnitsStandardOptional
1Feeder section
2Paper Alignment Section
3Pre-fold Section
4Crash lock bottom section
5Down pasting equipment
6Gluing system
7Grinder device
8Plasma treatment system
9Folding and closing section
10Trombone section
114-6 corner

Straight line box

Double sides box

Crash-lock bottom box

A

MAX

850

850

800

MIN

120

100

180

B

MAX

1000

700

800

MIN

60

70

60

C

MAX

200

200

200

MIN

8

10

25

Features:

The automatic adhesive box unit consists of a paper supply part, a glue-coated folding part and a counting and stacking part.Digital display speed regulation, microcomputer amplitude modulation, with simple and quick control mode, automatic paper supply, automatic gluing and folding, automatic counting, automatic stacking output, the average speed of adhesive box 150 pieces/min, speed 220 pieces/min, fast efficiency and labor saving is our pursuit.

Exhibition:

certificate:

FAQ:
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A: The deliver time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A: After we deal down all the things , we will offer you a spare parts list for your reference.
Q6. What’s your delivery time?
A: Depending on the type of machine, duration of 15 days to 60 days from the date of contract
Q7. Do you have after-sales support?
A Yes, we are happy to give advice and we also have skilled technicians available across the
world. We need your machines running in order to keep your business running.
Q8. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand
components .
Q9. What will you do if the machine is broken?
A: Our machine’s warranty period is 12 months, if the broken parts can’t repair, we can send the
new parts replace the broken parts freely, but you need pay the express cost yourself. I it is
beyond the warranty period, we can negotiate to solve the problem, and we supply the technical l
support for the whole life of the equipment.
Q10. Can you be responsible for transport?
A. Yes, please tell me the destination port or address. we have rich experience in transporting.
